Reverse Osmosis

Reverse Osmosis is a technology that is used to remove a majority of contaminants from water by pushing the water under pressure through a semi‐permeable membrane. Osmosis is a naturally occurring phenomenon and one of the most important processes in nature. It is a process where a weaker saline solution will tend to migrate to a strong saline solution. Examples of osmosis are when plant roots absorb water from the soil and our kidneys absorb water from our blood.

Reverse osmosis plants require a variety of pre-treatment techniques including softening, dechlorination, and anti-scalent treatment. Following pre-treatment, high levels of pressure send water through a semi-permeable membrane, which retains all contaminants but lets pure water pass through. Energy requirements depend on the concentration of salts and contaminants in the influent water; higher concentrations requires more energy to treat.

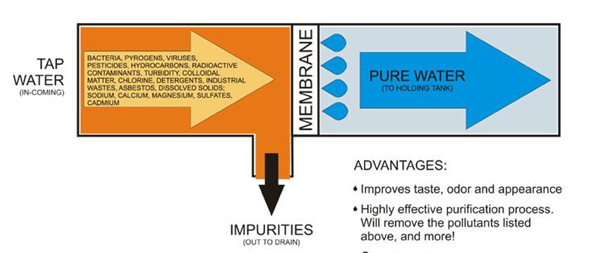

A reverse osmosis membrane is a semi-permeable membrane that allows the passage of water molecules but not the majority of dissolved salts, organics, bacteria and pyrogens. However, you need to ‘push’ the water through the reverse osmosis membrane by applying pressure that is greater than the naturally occurring osmotic pressure in order to desalinate (demineralize or deionize) water in the process, allowing pure water through while holding back a majority of contaminants.

SALIENT FEATURES :

  •   Produce high-quality dematerialized water
  •   Most modern membrane technology
  •   Modular design
  •   Low water-rejection rate
  •   Low operational and maintenance costs.

RO water treatment Plant Process

Reverse osmosis RO water treatment plant process is that allows the removal of unwanted particles (salts) from a solution. Reverse Osmosis water treatment plant is also used to treatment of water like removal of hardness, microorganism, salts and impurities in order to improve the color, odour, taste or properties of the fluid.

“Cross flow” is the advanced Reverse Osmosis RO water treatments Technology that allows a partially semi permeable Reverse osmosis RO membrane to clean itself continually. As some of the fluid passes through the membrane, the rest continues downstream, sweeping the rejected species away from it. Reverse Osmosis water treatment plant process requires a HPP (high pressure pump) to push the fluid through the membrane like high pressure and large driving force. For Brackish water approximately 10 to 20 bar applying as a osmotic pressure in solution to separate salt water as rejection and good water as product.

As concentration of the salts (fluid) being rejected increases, so does the driving osmotic force. Reverse Osmosis water treatment system is used to reject, sugar, bacteria, salts, proteins, particles, dyes, and other constituents. Separation of ions with reverse osmosis water treatment filtration is aided by charged particles. This means that dissolved ions that carry a charge, such as salts, are more likely to be rejected by the membrane . The larger the charge and the particle, the more likely it will be rejected.

Water Treatment Plant Designs

Pre-chlorination :   This is made to disinfect the raw water from any infections.

First Filtration:   By the pressure Sand filters to remove Turbidity and Suspended solids.

De-chlorination dosing:  To remove the remaining Chlorine after the pressure sand filter.

Antiscalent dosing:  It is very important to prevent Calcium Sulfate from scaling.

Acid dosing:  It is very important to prevent calcium carbonate from scaling by Sulfuric acid 98%.

Second filtration:  It is by the cartridge filter (5micron) is important to remove any particles exceed 5 micron size.

Feeding water:   High TDS raw water will pass through the semi permeable membrane under the high pressure, after boosting with high pressure (Osmotic Pressure ) approx 12 – 16 bar the membrane output water will treated and reduce to the required TDS .

Adjusting PH value by Sodium hydroxide 49%

Post chlorination dosing for disinfection by Sodium hydrochloride 12%.
