In the process of waste water treatment, water-containing sludge of different properties is generally produced. The sludge dewatering equipment mainly reduces the water content of the sludge, and reduces the sludge volume, thereby bringing convenience to the subsequent treatment or disposal of the sludge.

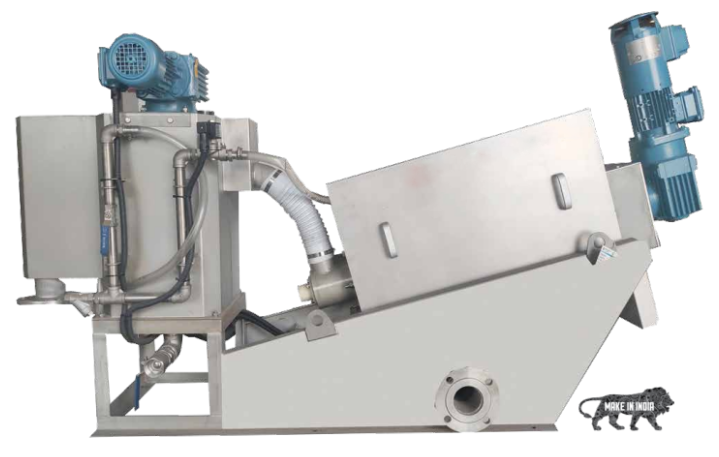

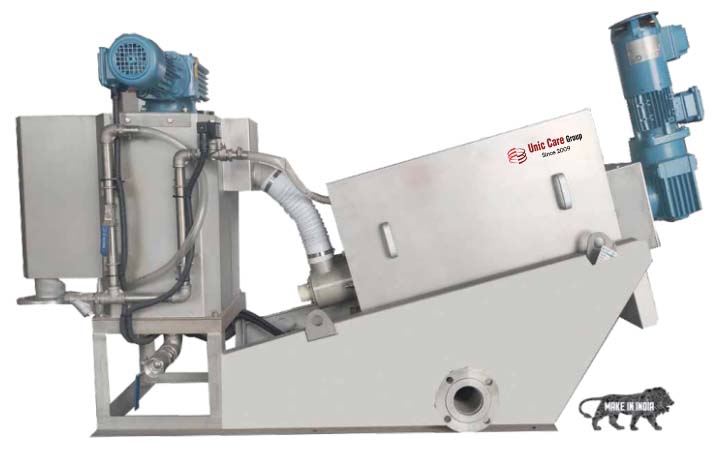

Our dewatering screw press is suitable for dewatering of liquid sludge from a wide range of including food and beverage, chemical, textile and dairy etc..
| Parameter | Unit | Dewatering Screw Press Model | ||||||||
| UCT-131 | UCT-201 | UCT-301 | UCT-302 | UCT-303 | UCT-4-01 | UCT-402 | UCT-403 | |||
| Solid Handling capacity | g/hr | For Feed Sludge Concentration of 2 g/L - 5 gll.(0.2% -0.5%) of solids | ||||||||
| 0006 | 0020 | 0040 | 0080 | 0120 | 0100 | 0200 | 0300 | |||
| For Feed Sludge Concentration of 5 g/L - 50 g/L (0.5% - 5.0%) of solids | ||||||||||
| 0010 | 0030 | 0060 | 12() | 0180 | 14-0 | 0280 | 0420 | |||
| Typical Oevratered Cake Ory Solids Content 2 | %OS | 15% -2()% | ||||||||
| Number of Screws | I | I | I | 0002 | 0003 | I | 0002 | 0003 | ||
| Screw Diameter | mm | 0130 | 0200 | 0300 | 0300 | 0300 | 0400 | 0400 | 4-00 | |
| Screw Gear Motor (Type) | (front-Transmission Gearbox) | |||||||||
| Mixer Gear Motor (Type) | Per Screw: 10 Uhat minimum 2 bar | |||||||||
| Screw Motor Power, each | WI | 0000.37 | 0000.75 | 0000.75 | 0000.75 | 0000.75 | 0001.5 | 0001.5 | 0001.5 | |
| WI | 0000.12 | 0000.12 | 0000.37 | 0000.37 | 0000.37 | 0000.37 | 0000.37 | 0000.37 | ||
| WI | 0000.75 | 0001.1 | I.I | 0001.9 | 2 6 | 0001.9 | 0003.4 | 0004.9 | ||
| Wash Water Requirement | (Worm-TransmissionGearbox) | |||||||||
| Inlet Pipe | mm | ON50 | ON50 | ON50 | ON50 | ON50 | ONSO | ON80F | ON80F | |
| Filtrate Pipe | mm | ON80 | ON80 | ON150F | ON200F | ON200F | ON200F | ON200F | ON200F | |
| Sludge Return Pipe | mm | ON80 | ON80 | ON80 | ON100F | ONIOOF | ON OOF | ON100F | ONIOOF | |
| Floculation Chamber Drain | mm | ON50 | ON50 | ON50 | ON50 | ON50 | ONSO | ON65F | ON65F | |
| Net Weight | g/hr | 0300 | 0580 | 0980 | 1350 | 1700 | 1350 | 2700 | 3750 | |
| overall Length | mm | 2200 | 2900 | 3600 | 3800 | 3950 | 4350 | 4900 | 5100 | |
| overall Height | mm | 1100 | 1350 | 1750 | 1800 | 1750 | 1750 | 2200 | 2200 | |
| overall Width | mm | 0600 | 0800 | 1000 | 1300 | 1750 | 1250 | 1600 | 2200 | |
| Materials of Construction | 304 Stainless Steel Machine, 316 Stainless Steel Screw(s) with Tungsten Carbide Coating, 316 Stainless Steel Rings and 304 Stainless Steel Control Panel. | |||||||||
