What is UV Water Purification & What Can UV Remove?

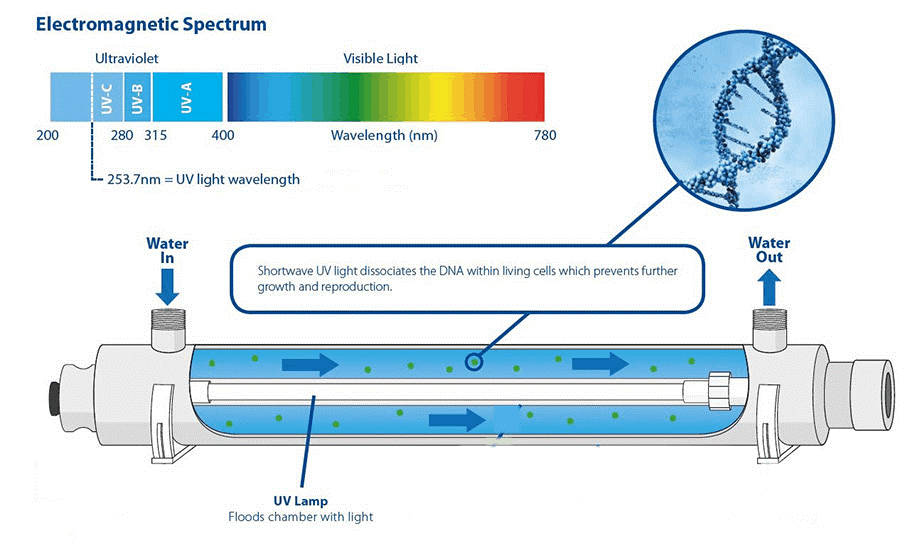

Ultraviolet or “UV” is a type of energy found in the electromagnetic spectrum, lying between x-rays and visible light. In spite of the fact that we can’t see UV light or beams, we are exposed to them each time we step out into the sun. In fact, UV light is responsible for causing sunburns.

UV Water Purification systems utilize special lamps that emit UV light of a specific wavelength that has the ability, based on their length, to disrupt the DNA of micro-organisms. These UV light waves are also referred to as the Germicidal Spectrum or Frequency. The frequency used in killing micro-organisms is 254 nanometers (nm). As water goes through a UV water treatment system, living organisms in water are exposed to UV light which attacks the genetic code of the microorganism and rearranges the DNA/RNA, eliminating the microorganism’s capacity to work and reproduce. If a microorganism can no longer reproduce, it can’t replicate, therefore it can’t infect other organisms with which it has contact. This procedure of exposing water to UV light is simple but effective, destroying 99.99 percent of harmful microorganisms without adding any chemicals to the water.

  Viruses

  Bacteria

  Cysts

  Coliform

  Salmonella

  Giardia

  Flu

  Polio

  Dysentery

  Cholera

  E.coli

  Cryptosporidium

  Typhoid Fever

  Meningitis

  Infectious Hepatitis

Single UV Lamp Designs

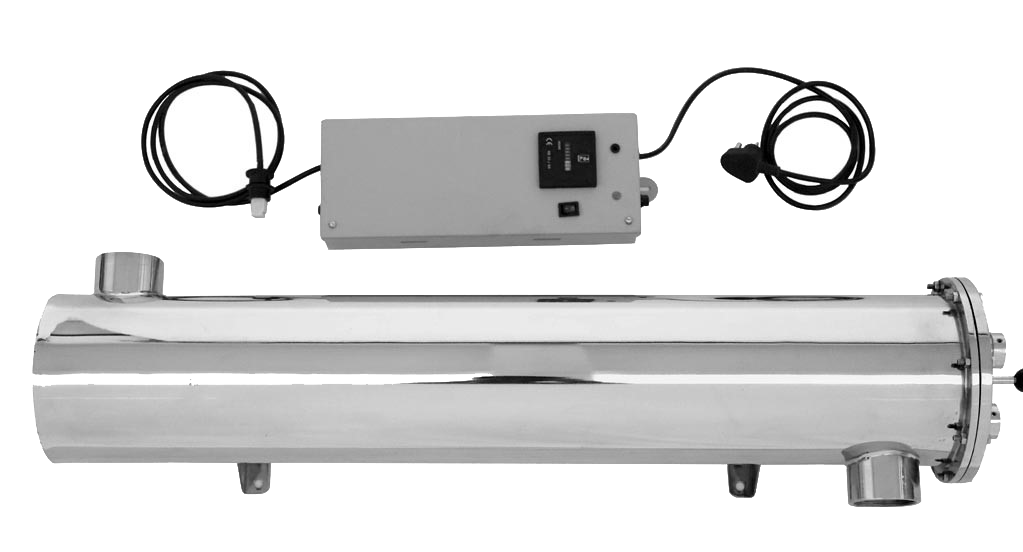

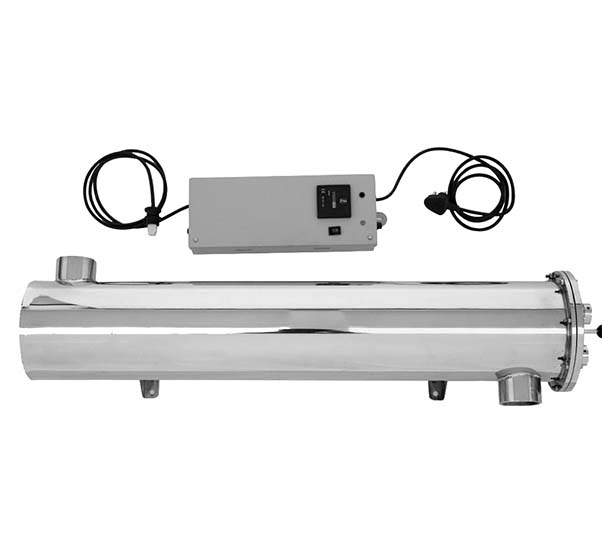

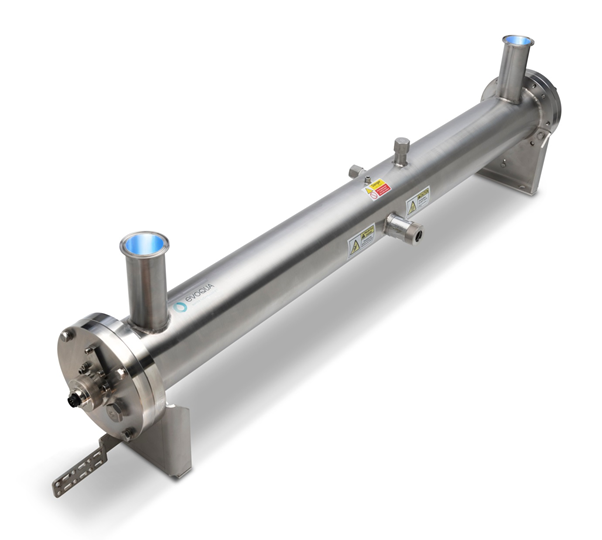

Single UV Lamp Design UCT Series are designed using special low-pressure high output Amalgam type UV lamps which provide high UV output in smaller sizes. This allows for UV systems with single lamp designs which significantly reduces operating costs and hassles while also allowing for incredibly accurate and reliable UV intensity monitoring.

Principle of Operation

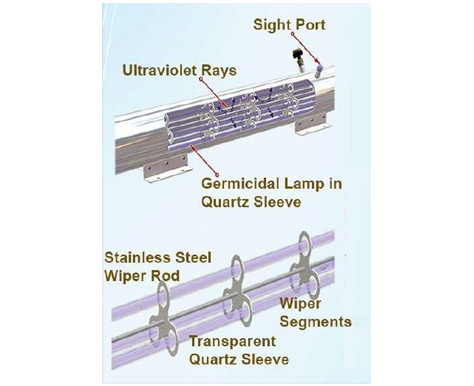

1. The water enters the Stainless Steel Disinfection chamber and flows into the space between the quartz sleeves and chamber wall where suspended microscopic organisms are exposed to intense shortwave germicidal UV radiation.

2. Automatic or Manual wiper system facilitates routine cleaning of quartz sleeves without disassembly or shutdown of disinfection systems.

3. Water Leaving the purifieris instantly ready for use.

Products
Awesome Image
Awesome Image
Ultimate Features And Benefits Of Unic Care UV

  Robust membrane keypad and user interface for all controller data.

  UV intensity and temperature monitoring and alarm with safety cutoff.

  MODBUS(RS485) protocol for fully digital interconnect to PCs or PLCs(Optional)

  PLC Automation System integrated for Controlling.

  Resettable UV lamp hour counter.

  System hour counter.

  End-Of-Lamp-Life alarm.

  Common Fault contact.

  Low UV Contact.

  Automatic Viper System for Quartz glass cleaning.

  Quartz glass above deposited content eg., Dust particles, Iron can be cleaned by Acid Dosage system (Automatic)

  Data Logging of all critical UV parameters to complaint SCADA systems(Optional).

  Centralized Monitoring System integrated for Controlling.

Applications
Awesome Image

Food & Beverage Industry

Awesome Image

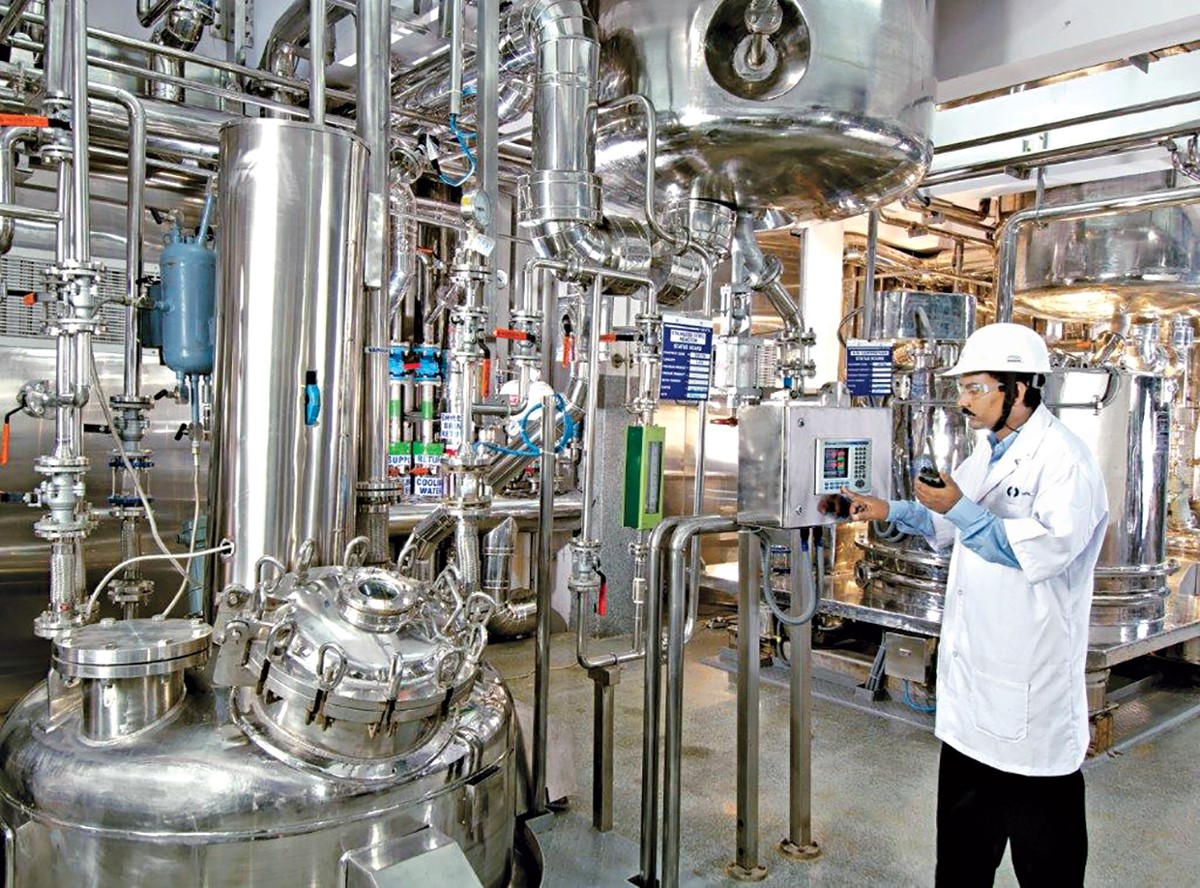

Pharmaceutical Businesses

Awesome Image

Cosmetic Industry

Awesome Image

Centralized Drinking Water System

Awesome Image

Disinfection & Reuse of Waste Water

Awesome Image

Swimming Pool
